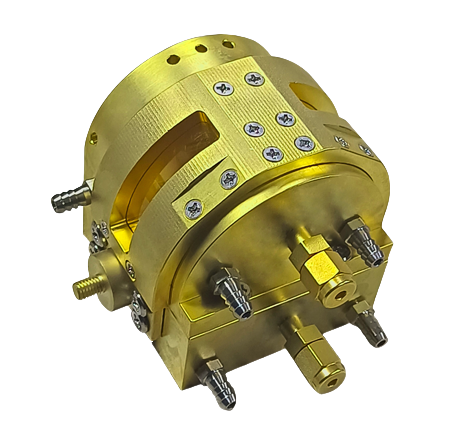

XRD High Temperature Reaction Cell
Product parameters and characteristics
●Material of tank body: SUS316 stainless steel;
●XRDWindow: polyimide film、lighting window、quartz;
●Sealing ring:fluorine rubber ring;
●Temperature test range: normal temperature ~ 300°C;
●Temperature control accuracy: ±0.1°C;
●Temperature uniformity: ±1°C;
●Atmosphere: Air permeable atmosphere；
●Light source:external light source can be introduced.
Product parameters and characteristics
●Material of tank body: SUS316+electroplate/injection molding;
●Window: Be;
●Sealing ring: PTFE;
●Temperature test range: normal temperature ~ 600°C;
●Temperature control accuracy: ±0.1°C;
●Temperature uniformity:±1°C;
●Surface temperature outside the tank:≤40℃
●Atmosphere: Can be connected to corrosive gases such as chlorinated gas, fluorinated gas, etc
Product parameters and characteristics：
●Material of tank body: ceramic;
●Window: Pi;
●Temperature test range: normal temperature ~ 1200°C;
●Temperature control accuracy: ±0.1°C;
●Temperature uniformity:±1°C;
●Surface temperature outside the cell: ≤ 40°C;
●Atmosphere: passable atmosphere.
