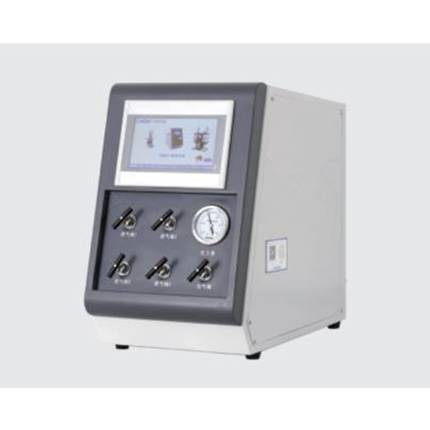

Four-Way Gas-Mixing System

The gas supply system can regulate the flow of different gases through the mass flow meter and mix them in appropriate proportions. Gas cleaning unit can be also added as needed by the experiment. The mass flow meter shall be installed in sealed pipe box and connected with duplex stainless steel tube and precision double-ferrule fitting. The touch screen control equipment can be used in conjunction with Kemi tube furnaces
Products Inquiry

Product Details

GD Series Gas Distribution Equipment

Gas distribution equipment
ModelTypeNumber of gas paths
GDTDesktop2~4
GBFFloor typeMore than 2


Four-Way Gas-Mixing System

The gas supply system can regulate the flow of different gases through the mass flow meter and mix them in appropriate proportions. Gas cleaning unit can be also added as needed by the experiment. The mass flow meter shall be installed in sealed pipe box and connected with duplex stainless steel tube and precision double-ferrule fitting. The touch screen control equipment can be used in conjunction with Kemi tube furnaces


Technical parameters


GDT-MFC-4
Adaptive powerAC220 V 50/60 HZ
Standard range of the flow meter100sccm/200sccm/200sccm/500sccm (Unless otherwise specified, it shall be calibrated with nitrogen. Ranges are selectable)
Operating temperature5~45 ℃
Operating pressure difference0.1~ 0.5 MPa
Maximum pressure3 MPa
Precision±1.5% FS
Measuring range-0.1~0.15 MPa (0.01 MPa/grid)
Needle valve316 stainless steel
Stop valve316 stainless steel needle valve
Size260*450*450 mm


Model List of GD Series Gas Distribution Equipment

TypeParameterModel code
Flow meter
Glass rotor flow meterGRF
Mass flow meterMFC
22
33
Number of gas paths44
Customizable-
