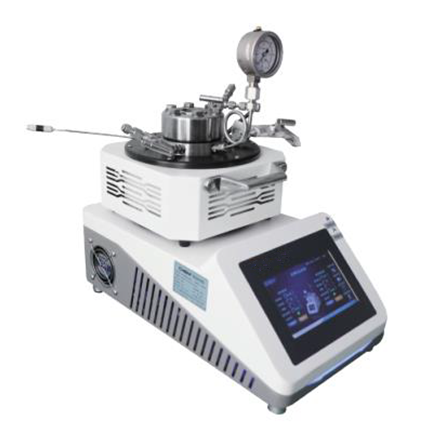

NSV Plus Photocatalytic Magnetic Stirring Reactor
Product features
Efficiency
⚫ Quick-opening structure
⚫ Power-assisted disassembly tools
Portable
⚫ V-stem portable needle valve with customized coating
⚫ Minimize the weight of the reactor on the premise of ensuring safety
Accurate
⚫ Intelligent PID temperature control mode
⚫ Digital display stepless speed regulation
⚫ Embedded heating module with faster heat transfer
Innovative view window
⚫ Sapphire crystal light-transmitting lens
⚫ Effective transmission diameter up to 26 mm (25-50 mL)
⚫ Effective transmission diameter up to 35 mm (100-500 mL)
⚫ Radial + axial sealing
⚫ DuPont™ Kalrez® FFKM o-ring
Safety
⚫ Adopt integrated machine shaping structure
⚫ Tenon-groove type main sealing structure
⚫ Over-temperature automatic power-off
⚫ American Swagelok needle valve for air inlet and outlet control
⚫ Fitok import relief valve and customized rupture valve, providing double protection
Technical parameters
| Design volume | 25 mL, 50 mL, 100 mL, 300 mL, 500 mL |
| Maximum operating temperature | 300 ℃ |
| Heating mode | Embedded stainless steel heating module |
| Heating power | 1 kW |
| Stirring speed | 400-1400 rpm (stepless speed regulation) |
| Stirring method | Built-in magneton stirring |
| Design pressure | Standard 10 MPa (optional) |
| Material of reactor | 316 L stainless steel, Hastelloy C-276, etc.(optional) |
| Personalized options | Various alloy materials, stirring forms, sampling and cooling, reflux condensation and catalyst basket, etc. optional configurations |
| Outline dimension | NSV25/50 mL: 372*250*300 mm NSV300/500 mL: 372*250*400 mm |
Model list
| Model List of Magnetic Stirring Reactor | |||
| Type | Parameter | Model code | Remarks |
| Design volume (mL) | 25 | 25 | |
| 50 | 50 | ||
| 100 | 100 | ||
| 300 | 300 | ||
| 500 | 500 | ||
| Maximum operating pressure (bar/psi) | 103/1500 | P3 | |
| Maximum operating temperature (℃) | 100 | T1 | |
| 200 | T2 | ||
| Material | stainless steel 316 L | SS1 | Consult our enginerring and technicial team if other materials are needed. |
| stainless steel 304 | SS2 | ||
| stainless steel 904 L | SS3 | ||
| stainless steel 310S/2520 | SS4 | ||
| Hastelloy C-276 | HC1 | ||
| Hastelloy B-2 | HB2 | ||
| Titanium alloy TA2 | TA2 | ||
| Zirconium 702 | ZR1 | ||
| Monel 400 | MN1 | ||
| Inconel 600 | IN1 | ||
| Optional interfaces and configurations | Sampling valve | S | The standard interface will be provided if no option is selected. One or more options can be selected. |
| Equilibrium reflux sampling | BS | ||
| Pressure sensor | PI | ||
| Digital pressure gauge | DP | ||
| Relief valve | SV | ||
| Temperature sensor | T | ||
| Others (ET) | ET | ||
| |||
