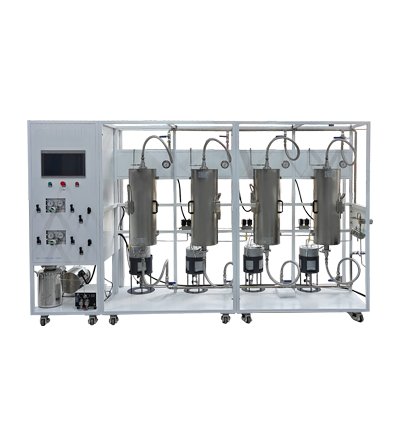

Multi-channel fixed bed reactor
Product introduction
Multi-channel fixed bed reactor is a high temperature and high pressure multi-bit reaction device designed to maximize the work efficiency of experimental personnel, which can realize the rapid, efficient and parallel screening of catalytic materials, reaction evaluation and process optimization. Each channel reactor can choose integrated, independent and fast switching mode.
Product advantages
⚫ Targeted:The process flow, process parameter confirmation and standard parts selection are completely customized.
⚫ Accurate calculation design:According to customer information, accurate material and heat balance calculation, including reactor, separation device, heat exchange device and other non-standard parts of the size, parameters of the calculation and design.
⚫Precision:Press ±0.25%F.S,flow±1%F.S,temperature difference in constant temperature zone ±1℃,the temperature difference between the channels is ±1°C.Temperature control accuracy ±0.1℃.
⚫ High degree of automation:Pressure, temperature, flow and other data collection and control integrated in the touch screen, the operation interface is simple and friendly, easy to use. Can realize automatic product sampling and analysis, all-weather continuous operation. It can realize arbitrary switch of evaluation stages such as forward processing, purging and reaction between different channels, and maximize the work efficiency of experimental personnel.
⚫Parallelism:Independently set reaction parameters of each channel, real-time monitoring status and product analysis: independent flow meter injection, temperature control, separate configuration of product separation, sampling and analysis module, control parameter errors between channels.
Technical parameters
Project | Index | Parameter |
Number of reaction channel | —— | 2-12 or customized |
Reaction condition | maximum operating temperature(℃） | 800 or according to demand and materia |
Maximum operating pressure（Mpa） | 10 or according to the demand and material | |
Feed module | feed composition | Single gas phase, multi-component gas phase, gas-liquid two groups, gas-liquid solid three phases |
Feed pretreatment mode | Filtration, pre-mixing, preheating, vaporization and remixing, vaporization after melting, etc | |
Gas/liquid feeding mode | Mass flow meter/bubble generator, syringe pump, plunger pump | |
Quantity of gas feed flow | 2-10 | |
Quantity of liquid feed flow | 1-4 | |
Feed distribution erro | 1% | |
| Module of reaction | mount of catalyst loading(ml) | 0.5-200 or customized |
Inner diameter of reaction tube(mm) | 10-60or Process calculaio | |
Catalytic bed form/height | Cylinder, ring column/irregular module after wrapping/10-500 or calculated according to process | |
Form of catalyst | Powder, granule, molding and overall structure type | |
Reaction tube material | quartz、316L、310S、hastelloy、 GH superalloy or check according to structure | |
Temperature control mode | Electric heating (electric heating furnace), light heating (high-power xenon lamp), heat transfer oil/molten salt circulation (jacket circulation temperature control) | |
Product separation module | clastotype | Gas-solid and gas-liquid separation、liquid-liquid separation |
separating unit | Cyclone separator, temperature controlled condenser、distillation and extraction separation | |
Product analysis module | —— | Off-line sampling、Online GC/MS/IR samplin |
System&auxiliary parameters | 20A,AC220V,50Hz,ground resistance＜4Ω | |
exhaust | Customized | |
Size(m) | Confirm according to assembl | |
safety | Electrical safety interlock, using the combination of hardware and software safety design, overpressure, stop temperature alarm, out of date is not processed automatically stop working; Misoperation protection. Power failure, gas stop treatment, etc |
