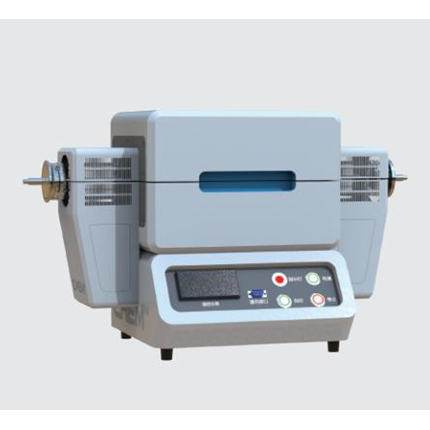

TFR Rotary Tube Furnace/Micro Rotary Furnace

TFR-1200-30-1-220 is a small single-zone rotary furnace adopting double-layer shell and air cooling system. The tube is driven by the motor to rotate at a low and steadier speed. The tube is a special-shaped quartz tube with internally welded lifting board that makes powder sintering more adequately and uniformly.
Products Inquiry

Product Details

TFR Rotary Tube Furnace/Micro Rotary Furnace


Technical parameters


Item/ModelTFR-1200-30-I-220
Adaptive powerAC220 V 50/60 HZ
Maximum temperature1200 ℃ (short-term)
Rated temperature1,100 ℃
Recommended heating rate≤10 ℃/min
Temperature control precision±1 ℃
Size of furnace tubeΦ30*700 (φ50*150) mm (customizable)
Size of furnace chamberφ80*220 mm
Heating zone length220 mm
Constant temperature zone length60 mm
ThermocoupleK-type
Heating elementBeijing SHOUGANG HRE
Rated power1.5 kW
Outline dimension340*300*380 mm
Weight20 kg
