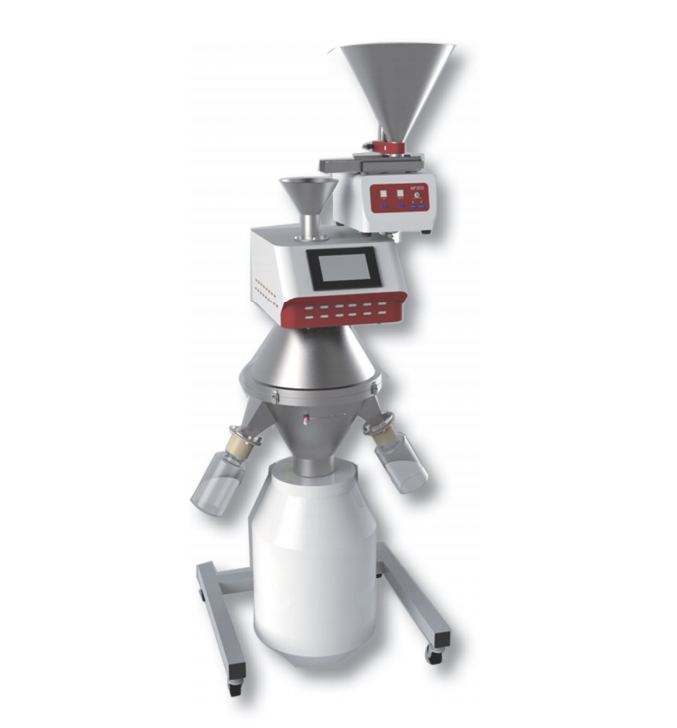

AF400 Sample Automatic Divider

AF400 Sample Automatic Divider a instrument can adjust the ratio of the fractions.It is suitable for powdered or granular bulk materials with particle sizes up to 10 mm.It is used for the simple division and reduction of bulk materials of all kinds.
Products Inquiry

Product Details

AF400 Sample Automatic Divider

AF400 Sample Automatic Divider a instrument can adjust the ratio of the fractions.It is suitable for powdered or granular bulk materials with particle sizes up to 10 mm.It is used for the simple division and reduction of bulk materials of all kinds.Provide representative dust-free samples.The rotating divider is available with bottom cones for 1, 2 or 3 samples.The gap width adjusts the ratio of the fractions and therefore the amount ofthe part sample.


Technical Information

Technical ParameterAF400 Sample Automatic Divider
Sample TypeBulk materials
Number of divisions1-3
Time SettingDigital, 1 - 99 min / continuous operation
Speed50-120rpm
Bottom Cones1,2,3
Slot Width, Continuously adjustable1 sample outle 0-159mm, 2 sample outles 0-110mm 3 sample outles 0-53mm (Customized)
Max. Dividing ratio1 sample outlet 1×1:5, 2 sample outlets 2×1:7.2, 3 sample outlets 3×1:15 (Customized)
Min. Dividing ratio1:26 Three bottom cones can be used
Volume of collector250ml,500ml
Volume of reject collector30L (Customized)
W×H×D590mm×1430mm×600mm
Weight Net55KG
Electrical Parameters220V/100W
