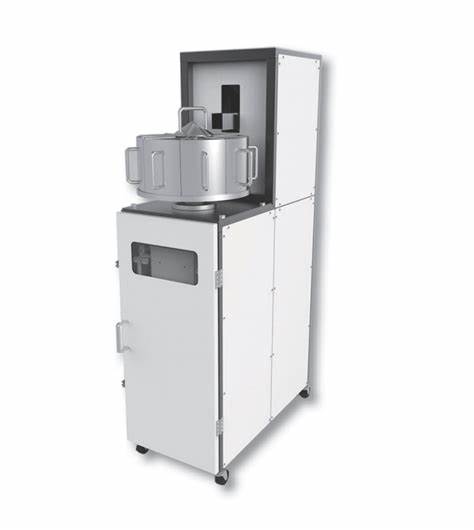

AF450 Sample Automatic Divider
AF450 has two functions of sampling and shrinking.Large particle samples can be divided and shrunk.Different sample module can provide different sample proportion selection.
Rotating divider AF450, It ensures automatic and synchronous sample injection. Make the sampling process consistent and representative from beginning to end.
Performance Advantages
A.Dual function design of dividing sample and shrinking.
B.Both sample and shrinkage guarantee representative and repeatable results.
C.Compact design, modular design facilitates disassembly and cleaning.
D.Digital display of time and speed.
E.Stepless sample, wide applicability.
F.Automatic feed slot Angle adjustable.
G.Low noise operation.
Technical Information
| Technical parameter | AF450 Sample Automatic Divider |
| Sample Type | Bulk materials |
| Feed Size | ≤12mm |
| Number of divisions | 1-10 |
| Speed | Maximum 120 rpm |
| Container Volume | 400ml |
| Volume of reject collector | 6.5L |
| Feed Slot Angle | 0-5° |
| W x H x D | 380mm×1320mm×740mm |
| Net Weight | Approx. 80KG |
| Electrical Parameters | 220V/50Hz/250W |
