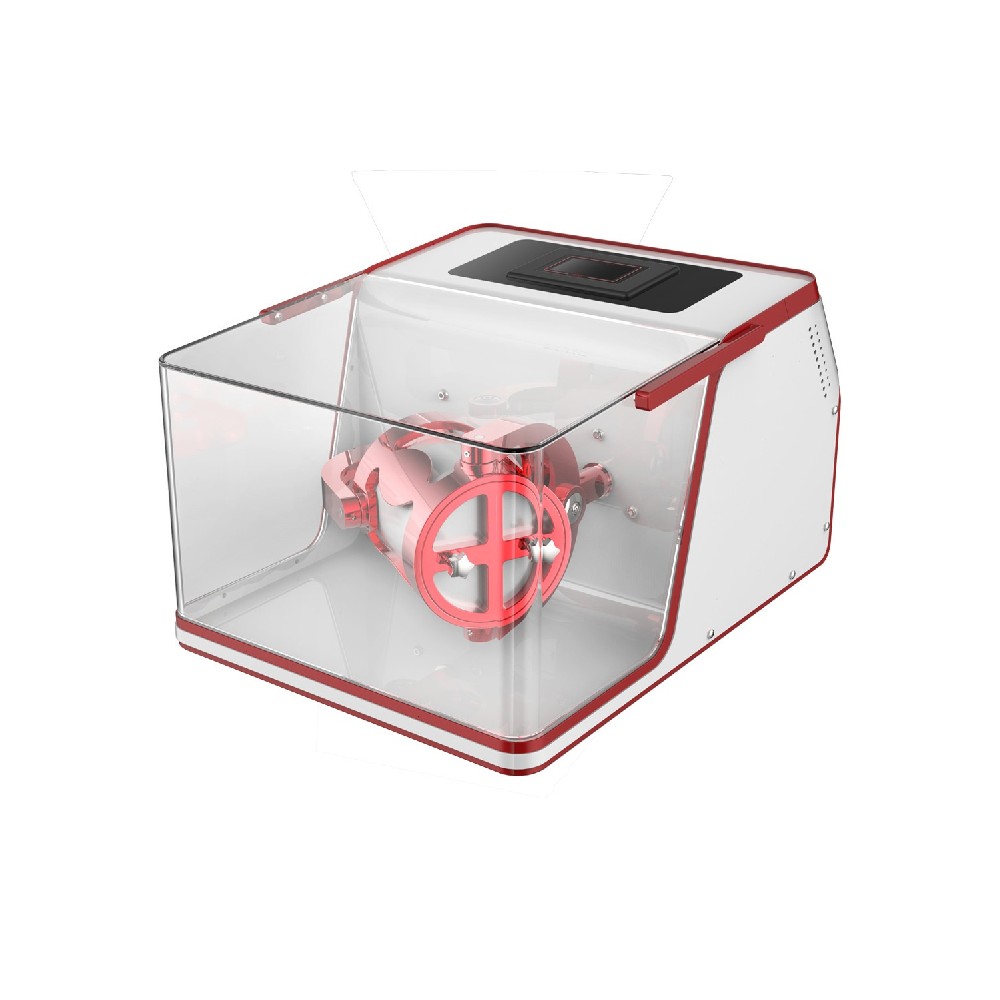

AF500 3D Sample Mixer
The three-dimensional sample mixer is mainly used to mix substances of different types, different particle sizes and requiring high uniformity mixing. The sample is mixed in a fully enclosed container for dry-dry sample mixing, dry-wet sample mixing, and wet-wet sample mixing. The entire process ensures dust-free operation for easy cleaning.
Performance Advantages
A.Three-dimensional motion, smaller shear.
B.Optional container volume, large processing capacity, high degree of mixing.
C.Mixing containers of different materials to suit different samples.
D.Easy to operate, easy to disassemble and easy to clean.
E.No dust pollution, improve the experimental environment.
F.LCD touch screen for a comfortable operating experience.
Technical Information
| Technical Parameter | AF500 3D Sample Mixer |
| Sample Type | Dry granule, Powder sample, Wet sample |
| Container Volume | 1L,2L Optional |
| Container Material | Plastic, Stainless steel, Aluminum |
| Speed Setting | 20-120rpm, Digital Display, Continuously adjustable |
| Time Setting | 1s-99h99min59s, Digital Display, Continuously adjustable |
| Intermittent Time setting | 1s-99min59s, Digital Display, Continuously adjustable |
| Stop Time setting | 1s-99min59s, Digital Display, Continuously adjustable |
| Parameter Storage | 10 groups |
| Cycle Number setting | 1-20 |
| Operating Mode | Forward, Reverse, Intermittent |
| Control Panel | LCD touch screen |
| W×H×D | 463mm×380mm×607mm |
| Instrument Weight | Approx. 50kg |
| Electrical Parameters | 220V/50Hz/250w |
