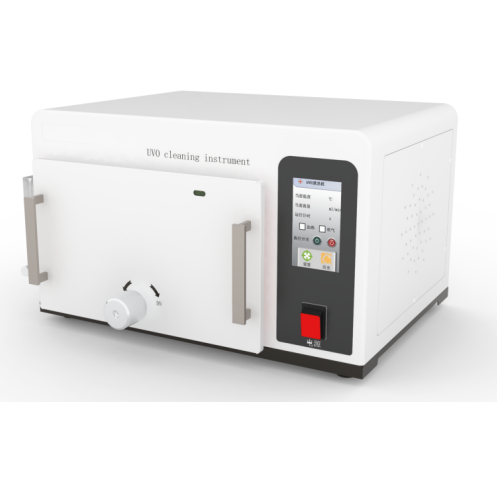

UV Ozone Cleaner UV100
Silica gel and other surface UV Ozone Cleaner Adopting a more user-friendly drawer tray design, it features industrial-grade cleaning efficiency and effectiveness. It is widely used in photovoltaic (perovskite cells), semiconductor chips (wafers), and optical communication fields, and is suitable for cleaning small and medium-sized substrates such as liquid crystal panels, ITO, FTO, optical glass, OLED, LCD, silicon wafers, ceramics, metal sheets, and polymers. cleaning can effectively remove organic substances on the surface of the substrate, that is, carry out surface modification, thereby effectively improving the hydrophilicity or adhesion of the substrate surface.
Features
1.Quartz low-pressure mercury vapor UV lamp set, with lamp life exceeding 8,000 hours. 2.High-intensity UV light source, emitting wavelengths of 185nm and 254nm. 3.UV lamp dimensions: 22x27cm. 4.UV grille lamp reflector dimensions: greater than 23×32cm. 5.Fully mirrored drawer-style reaction chamber for more uniform UV light distribution. 6.Knob-controlled timer for setting cleaning duration, adjustable from 1 to 60 minutes. 7.Manual interruption capability during processing. 8.Drawer-style opening/closing mechanism for simple and convenient operation. 9.Integrated sample stage allowing free placement of samples for easy operation. 10.Equipped with ventilation duct compatible with ozone neutralizer for ozone elimination.
Technical Parameters
| Lamp Power | 240W |
| Sample Stage Size | 220*270mm |
| Sample Stage Lifting | 50 mm |
| Heating Temperature Range | RT~200°C |
| UV Wavelength | 185 nm, 254 nm |
| UV Lamp Type | Dual-wavelength Lamp |
| UV Lamp Service Life | 8,000~10,000 hours |
| Safety Protection Function | The lamp turns off automatically when the chamber door is opened |
