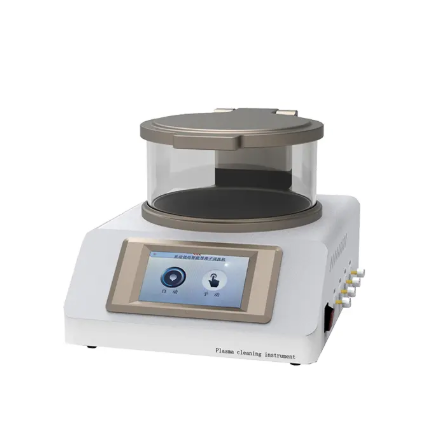

ACG-PCM-7 Plasma Cleaner

ACG-PCM-7 Plasma Cleaner

The plasma cleaner is a small non-destructive surface treatment equipment. It adopts energy conversion technology to convert gas into highly reactive plasma by electric energy under a certain vacuum negative pressure state. The plasma gently bombards the surface of solid samples and changes their molecular structure, realizing molecular-level ultra-cleaning of organic contaminants on the sample surface. Organic pollutants are completely exhausted by the external vacuum pump in a very short time.

Under certain conditions, it can also modify the surface properties of samples. Using gas as the cleaning medium effectively avoids secondary contamination of the samples. The plasma cleaner can improve the adhesion, compatibility and wettability of material surfaces, and also achieve disinfection and sterilization.

Plasma cleaning technology is now widely applied in optics, optoelectronics, electronics, material science, life science, polymer materials, biomedicine, microfluidics and other fields.

Product Features

1. Adopts a 7-inch color touch screen operation interface with convenient human-computer interaction and user-friendly layout.

2. Supports two operating modes: manual and automatic.

3. The entire cleaning process is controlled by a microcomputer for fully automatic operation.

4. Gas circuit control adopts electronic flowmeter combined with manual fine-tuning valve. Dual gas circuits are standard, with a maximum expandable configuration of four gas circuits.

5. Gas mass flowmeter is optional (up to 4 gas channels).

6. Adopts upper and lower electrode RF technology for uniform plasma excitation.

7. Equipped with safety protection; the high voltage will be cut off once the air pressure threshold is triggered.

8. Sample tray: φ270mm × 120mm, offering superior capacity and accommodatable sample height.

9. Automatically records experimental setting conditions to facilitate subsequent experimental repetition; capable of storing up to 1000 experimental records automatically.

Technical Parameters
