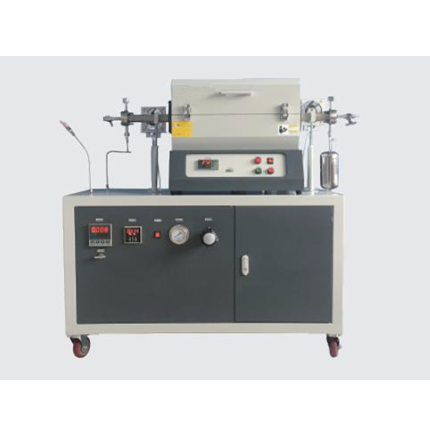

TFP High-Pressure Tube Furnace

High-Temperature and High-Pressure Tube Furnace with Continuous Sample Loading
Products Inquiry

Product Details

TFP High-Pressure Tube Furnace


Technical parameters

Item/ModelTFP-1200-50-I-440
Body structure

· The body is designed as open type

· The furnace adopts double-layer shell structure and air cooling system to make the shell surface temperature lower than 60 ℃

· The chamber adopts high purity alumina fiber to reduce energy loss

· The flanges are equipped with cooling fans to keep their temperature lower than 80 ℃

Temperature control system

· PID is adopted to control heating and cooling and supports protection for over-temperature and for open circuit of thermocouple

· PC temperature control software can be selected to import temperature control program and temperature curve to the computer

Comparison between operating tempe

· Maximum pressure in the tube: ≤5 MPa, ≤6 MPa, ≤7 MPa, ≤9 MPa

· Heating temperature: ≤750 ℃, ≤500 ℃, ≤400 ℃, ≤200 ℃

Tube parameters

· The tube is made of high temperature alloy steel GH3128

· Size: φ50*φ42*1,000 mm

Operating gas

· Inert gas and nitrogen

· Flammable and explosive gas should not be passed (please consult Kemi technician if needed)

Inlet flow control

· The panel is provided with a pressure sensor and a digital display, showing inlet pressure

· A high pressure proton flux controller with 10 MPa operating pressure and 500SCCM flux control is installed at the air let of the tube

Product collection device

· Condenser, which shall be used in conjunction with a low temperature thermostatic bath (-20-98 ℃)

· Gas-liquid separator with sampling valve at the bottom

Exhaust gas collection

· Gas bag for real-time gas collection during the reaction

· Flow monitoring system at exhaust gas end

Outline dimension· 1400*600*1200 mm


Model list

Model List of TFP Series High-Pressure Tube Furnaces
TypeParameterModel codeRemarks
Operating temperature (℃)600600
800800
10001000
11001100
Pressure (MPa)33Determine the product model together with the temperature parameter
55
1010
Customizable——
Tube parameter (mm)φ3030
φ5050
φ8080
Customizable——
Materia310S310SDetermine the product model together with the temperature parameter Other materials are customizable
GH31283128
GH202202
Number of heating zonesII
IIII
IIIIII
Customizable——
Heating zone length (mm)200200
220220
440440
Other——
