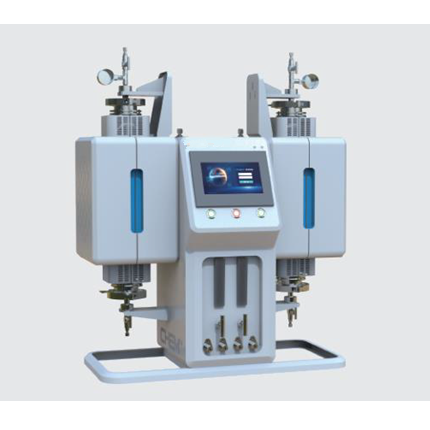

TFTFG Catalyst Atmosphere Calcination Activator
Product features Quartz tube and sample cell creatively designed
⚫ Aimed at the atmosphere calcination or activation demand of granular catalyst (0.1-10 mL)
⚫ Innovative and delicate quartz tube and sample cell design
⚫ Easy to load and transfer a small quantity of catalyst granules
⚫ Ensure that the atmosphere can uniformly pass through granules at different positions to make the treatment more uniform and repeatable American Super OMEGACLAD™XL thermocouple
⚫ Super stable temperature drift — less than 2.8 ℃ after 25 weeks
⚫ The expected service life of the probe is 10 times that of similar competitive products* American Dwyer RATE-MASTER rotor flowmeter
⚫ The unique integral fluid guide design controls and maintains flow stably
⚫ Integrally formed solid, transparent and shatterproof polycarbonate material Intelligent temperature control system
⚫ New color touch screen operation
⚫ Multiple programmable segments for intelligent temperature control with a temperature control precision of ±1 ℃
⚫ Integrating measurement, display, alarm, record and history curve, etc.
Technical parameters
| Item/Model | TFG-1200-50-I-220 |
| Rated temperature | 1,100 ℃ |
| Sample cell volume | 10 mL (customizable) |
| Sample cell diameter | 30 mm |
| Heating zone length | 220 mm |
| Rotor flow meter range | 30-200 mL/min (customizable) |
| Control system | Dual-channel intelligent temperature control |
| Rated power | 2.0 kW |
| Adaptive power | AC220 V50/60 HZ |
| Outline dimension | 660*320*580 mm |
| Weight | 35 kg |
| Model List of TFG Series Vertical Tube Furnaces | |||
| Type | Parameter | Model code | Remarks |
| Tube parameter (mm) | φ8 | 8 | About 10 mL catalyst |
| φ40 | 40 | ||
| φ50 | 50 | ||
| Customizable | —— | ||
